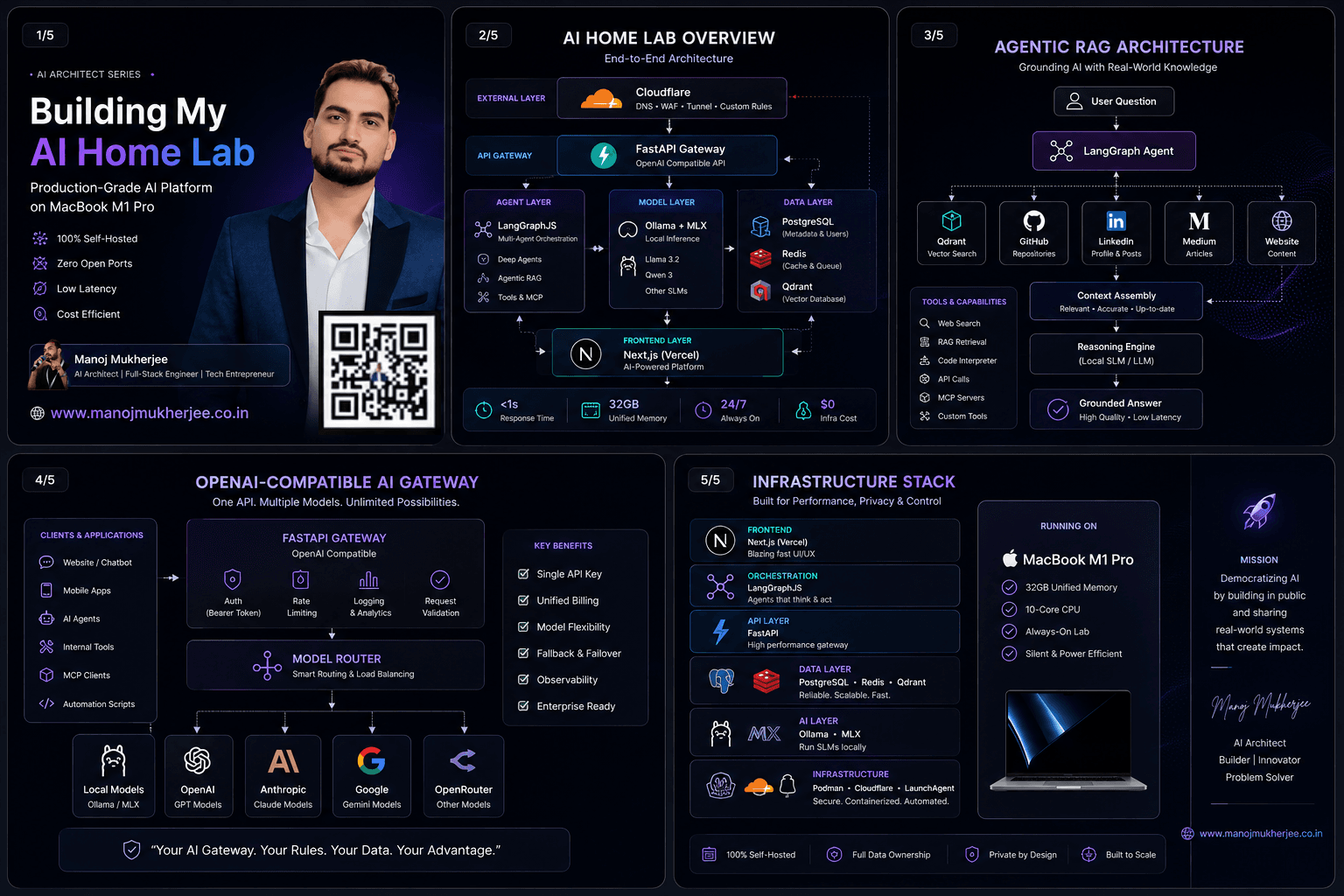

Home Lab Blueprint
The first lab artifact is my private AI platform.
Secure ingress, API gateway, agent runtime, local inference, data stores, and frontend surfaces.
AI Gateway
FastAPI gateway with OpenAI-compatible contracts, auth, rate limits, logging, and model routing.
Agent Runtime
Python LangGraph orchestration inside the FastAPI gateway; Astra remains the JS/TS website-side agent surface.
Model Layer
Ollama and MLX for local model experiments, with fallback thinking for cloud model lanes.
Data Layer
PostgreSQL, Redis, and Qdrant for metadata, cache, queues, and vector search.
Frontend Surface
Next.js interfaces that turn the lab into a usable architecture playground and learning surface.
Graph Playground
Simulate a LangGraph-style agent run.
Preset inputs, node transitions, checkpoints, approval gates, retries, and state inspection.
Active graph node: Input
LangGraph Run
Orchestration Console
Risk
High
Mode
Async queue recommended
Checkpoints
0
Retries
0
Execution Path
01 / 08
active
input node
state
state.intent, state.policy_scope, state.risk_level
checkpoint
pending
gate
Not reached
Interactive Workbench
Inspect the flows, then inspect the tradeoffs.
Select a system and inspect inputs, outputs, metrics, and failure modes.
Trace ready
AI Home Lab (Apple Silicon)
Vercel-hosted Astra calls a private Python FastAPI gateway through Cloudflare Tunnel.
Evaluation Metrics
Runtime Split
TS + Python
Astra stays in Next.js while gateway orchestration runs in Python.
Gateway Port
8000
Private FastAPI server is reached through the Cloudflare tunnel.
Security Surface
Zero open ports
Incoming traffic strictly flows through secure, egress-only Cloudflare tunnels.
Node Inspector
Vercel Surface
Astra Website
Runs the public chat surface and API route in the Vercel-hosted Next.js site.
> INPUT
Visitor chat request from manojmukherjee.co.in
> OUTPUT
OpenAI-compatible request from the Next.js API route
> METRIC
JS/TS website-side agent tooling
POTENTIAL FAILURE MODE
Gateway unavailable. The UI returns a bounded fallback state.
Empirical Sandbox
Ground the lab in local hardware reality.
Live-ready local model inventory, throughput, memory, and tunnel health.
Local Sandbox
Apple Silicon telemetry hook.
Live-ready metrics for models, memory, tunnel health, and local AI infrastructure.
Source
Snapshot
Health
Local lab telemetry hook ready
Tunnel
Cloudflare
Stores
Postgres / Redis / Qdrant
online
Qwen 14B
Ollama / Apple Silicon
Generation
18-28 tok/s
Memory
9-12GB unified memory
testing
DeepSeek-R1 Distill
Ollama local reasoning lane
Generation
10-18 tok/s
Memory
12-16GB unified memory
standby
Llama 3.2 SLM
MLX / local router
Generation
35-55 tok/s
Memory
3-5GB unified memory
Host
MacBook M1 Pro
32GB unified memory, local inference and data stores.
Gateway
FastAPI
OpenAI-compatible routing, auth, logging, and fallback policy.
Vector Store
Qdrant
Local semantic retrieval with cache-aware query paths.
Ingress
Cloudflare Tunnel
Egress-only tunnel path with zero open local ports.
Tunnel Log
T-00:04
Tunnel route healthy; gateway reachable through private ingress.
T-00:11
Local model lane selected for low-risk router classification.
T-00:18
Cloud fallback reserved for high-context reasoning requests.
